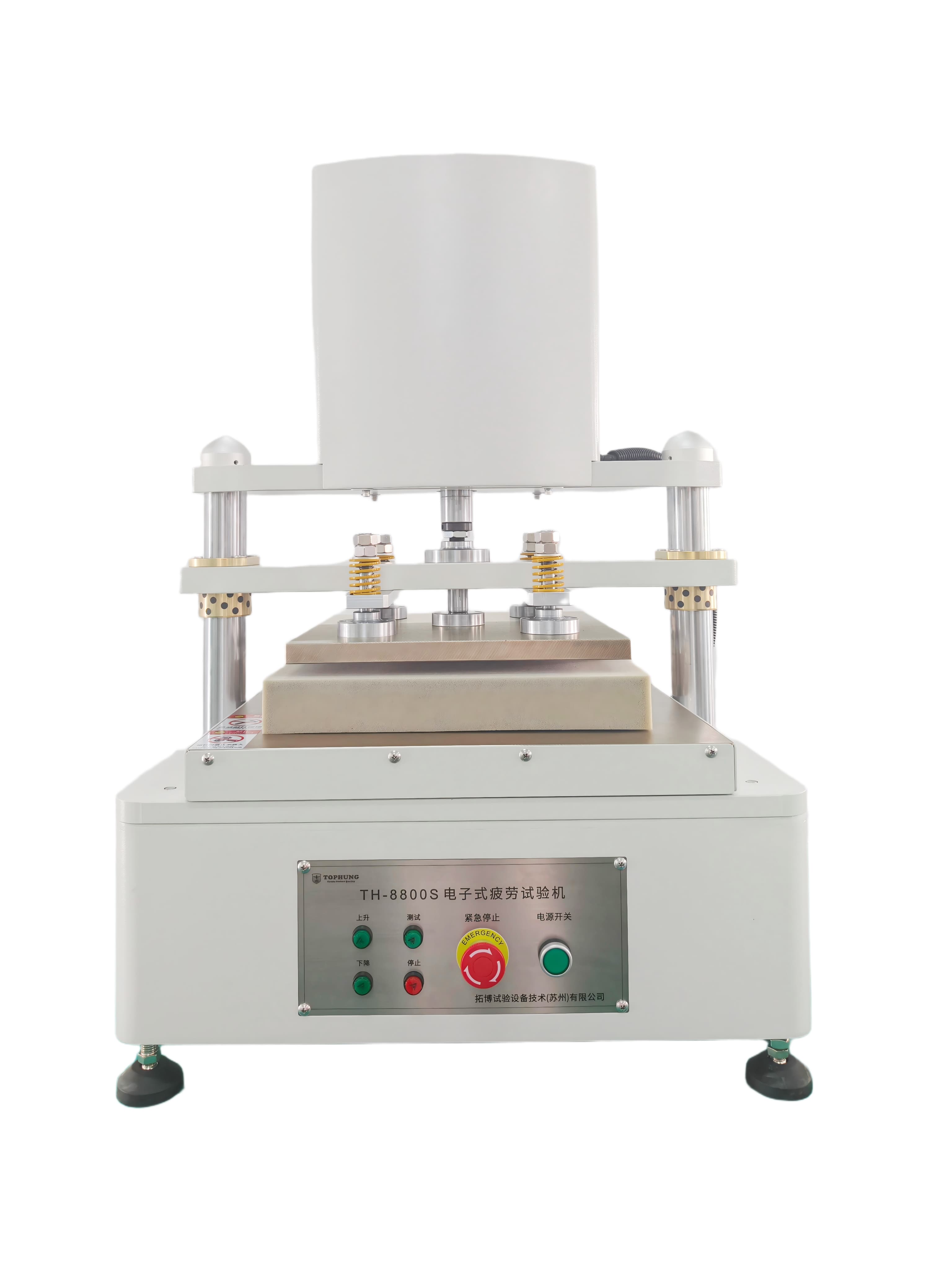

Electronic Fatigue Testing Machine
Model: TH-8800S
| Advantages |
 |
 |
|
High Accuracy Employ the intelligent sliding mode control algorithm SPIV to ensure smooth static control and sensitive dynamic control. |
High Intelligence TOP - 901DE intelligent control instrument is a new generation of intelligent control product developed by our company based on the ISD platform. |
Test item: It is widely used in aerospace, ships, military industry, higher education, atomic energy and other fields. It is applicable for testing the dynamic and static mechanical properties of various materials, components, elastomers, rubber elastomers and shock absorbers, as well as low-cycle and high-cycle fatigue, crack propagation and fracture mechanics tests.
| Product parameters |
| Model | TH-8800S |
| Name | Electronic fatigue testing machine |
| Capacity | 5kN |
| Accuracy grade | Better than 0.5 level |
| Load range | 0.2%-100%FS |
| Force error | Within±0.5% |
| Force resolution | 1/±500000 |
| Deformation resolution | 0.0005mm |
| Displacement error | Within±0.5% |
| Displacement resolution | 0.0005mm |
| Speed adjustment range | 0.1-10(mm/s) |
| Fatigue life cycle | 1 to 999,999 cycles, can be set arbitrarily |
| Effective test width | ±50mm (Customizable) |
| Effective space | 500mm |
| Dimension | 800*450*980mm |
| Power | AC220V 50Hz 0.75KW |
| Weight | About 100kg |
| Equipment operating environment requirements | Temperature: 15ºC to 35ºC; Humidity: 10% to 80% |
|
Applications |
The TH-8800 Series Electronic fatigue testing machine adopts full digital force, displacement, and speed three-loop control during the testing process. It uses Japanese Panasonic AC servo motors and control drive systems, with servo electric cylinders for transmission, aiming to achieve the best transmission efficiency and cost-effectiveness. It features low noise, energy saving, cleanliness, high rigidity, impact resistance, ultra-long lifespan, and simple operation and maintenance. It can work without faults for a long time in harsh environments and has a protection level of IP66. The electric cylinder can work in complex environments with only regular grease lubrication, and there are no easily damaged parts that require maintenance and replacement. Compared to hydraulic and pneumatic systems, it reduces a large amount of after-sales service costs. At the same time, a front and rear sensing limit switch can be installed on the cylinder body, which cooperates with the servo motor system and motion control system to improve system safety.
| Test Types |
Torque fatigue test; Dynamic simulation test; Static torque test
| Service |
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
--24 Hours online service for your consult.
--Help choose right model, and a series of service, person, advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convenience.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Engineer are available for oversea training.
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4. Commitment
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
| FAQ |
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 12 years focusing on test equipment field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by HAIDA,we can help you to repair
your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q:What about the product' services and quality?
A:Each equiopment must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.
A :Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
Q: Can your products be customized?
A: Yes, our product can be customized according to your parameters.
